UL System Firestop Penetration Detail for Steel Pipe

Materials

Elements

About this detail

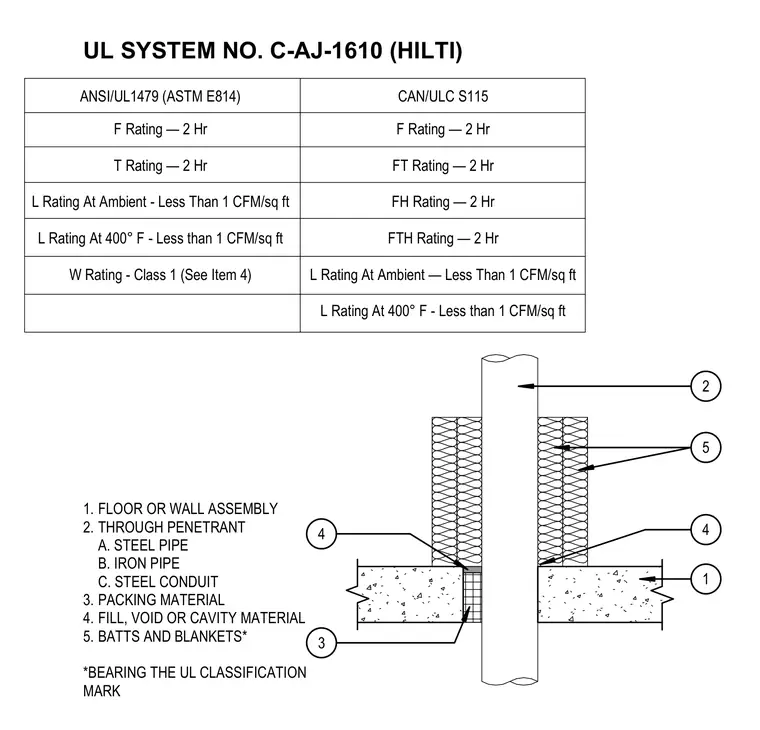

This firestop assembly accommodates steel pipe, iron pipe, or steel conduit penetrating a floor or wall assembly. The annular space is packed with mineral wool batts and blankets bearing the UL classification mark. A fill, void, or cavity material seals the penetration at the surface. The system achieves a 2-hour F rating and T rating, with low air leakage ratings at ambient and elevated temperatures.
