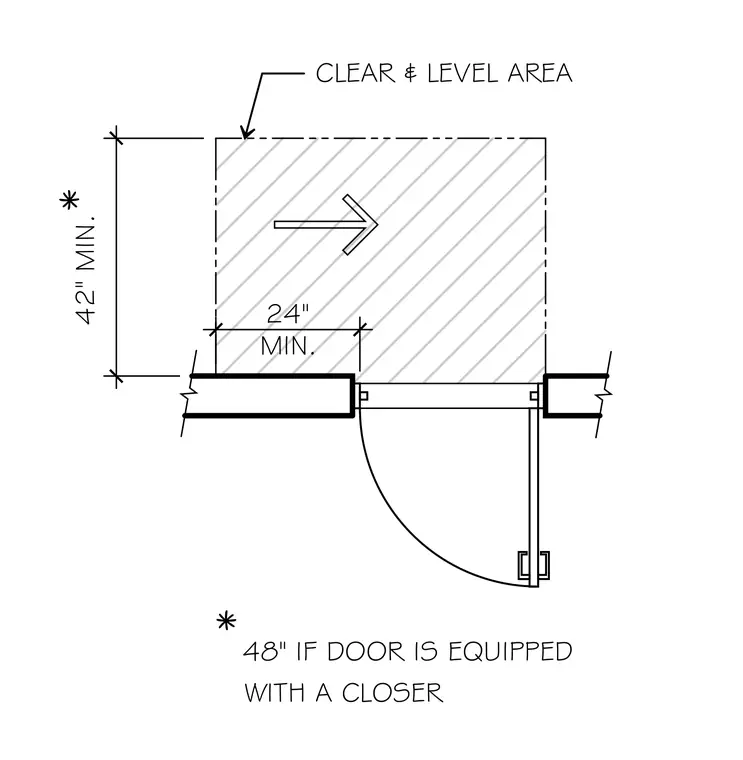

An interior door approach requires a minimum forty-two inch clear and level area extending twenty-four inches past the latch side. If the door is equipped with a closer, this perpendicular clearance increases to forty-eight inches.
* 48" IF DOOR IS EQUIPPED WITH A CLOSER 42" MIN. * 24" MIN. CLEAR & LEVEL AREA V K 0 7^ IF! t El
