Typical Monitor Module

Materials

Elements

About this detail

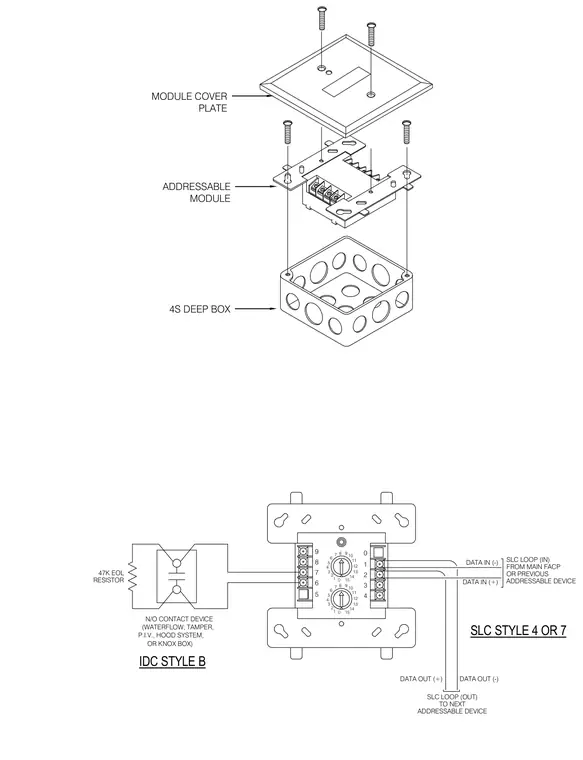

An addressable fire alarm monitor module mounts inside a four-inch square deep box and secures with machine screws beneath a matching module cover plate. The wiring diagram details the connections for a Style 4 or Style 7 signaling line circuit loop entering from the main fire alarm control panel or a previous device and continuing to the next addressable device. An initiating device circuit style B connects a normally open contact device such as a waterflow switch, tamper switch, post indicator valve, hood system, or Knox box, terminated with a 47-kilohm end-of-line resistor.
