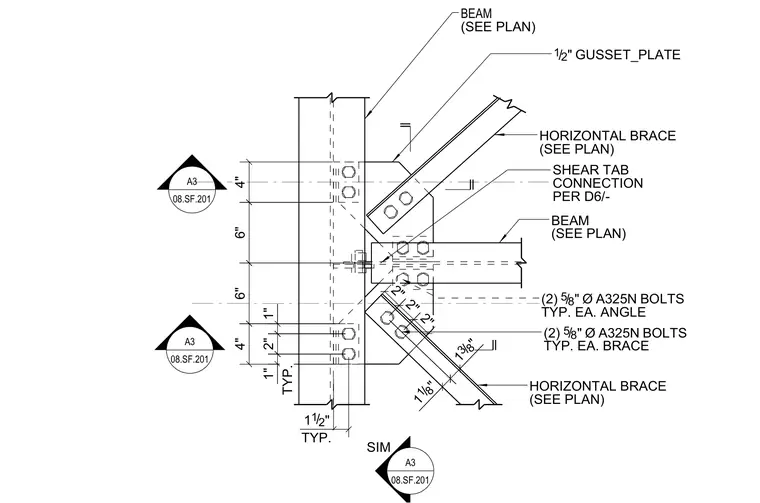

A horizontal structural brace connects to a column and intersecting beam via a one-half-inch gusset plate. The beam connects to the column through a shear tab connection using two five-eighths-inch diameter A325N bolts typically on each angle. The horizontal brace member attaches to the gusset plate using two five-eighths-inch diameter A325N bolts typically on each brace. The beam and horizontal brace sizes are sized per plan.
HORIZONTAL BRACE (SEE PLAN) HORIZONTAL BRACE (SEE PLAN) BEAM (SEE PLAN) BEAM (SEE PLAN) 12 / " GUSSET_PLATE A3 08.SF.201 SIM A3 08.SF.201 1 18 / " 1 38 / " 2" 2" 2" 1 1 2 / " 1" 2" 1" 4" 6" 6" 4" A3 08.SF.201 (2) 5 8 / " Ø A325N BOLTS TYP. EA. ANGLE TYP. TYP. SHEAR TAB CONNECTION PER D6/- (2) 5 8 / " Ø A325N BOLTS TYP. EA. BRACE
