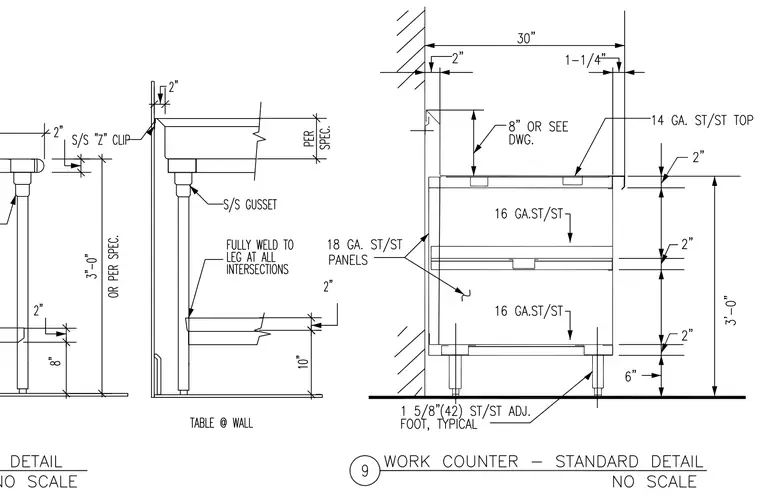

A 14-gauge stainless steel top plate spans thirty inches and rests on an eighteen-gauge stainless steel panel framework. The assembly is secured to the wall using a stainless steel Z-clip at the upper rear edge. Two interior sixteen-gauge stainless steel shelves are supported by stainless steel gussets, with legs fully welded at all intersections. The entire unit sits on one and five-eighths inch adjustable stainless steel feet with a standard floor clearance of six inches.
