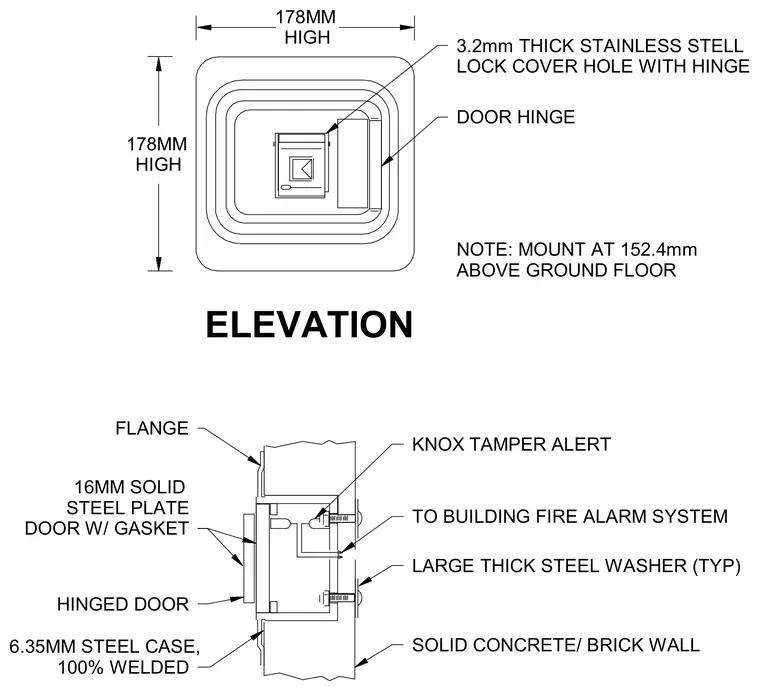

A 6.35 mm thick steel case with one hundred percent welded construction is recessed into a solid concrete or brick wall and secured with large thick steel washers. A 16 mm solid steel plate door with a gasket and a 178 mm high hinged door flange closes over the housing. A 3.2 mm thick stainless steel lock cover features a hinge and connects a Knox tamper alert to the building fire alarm system. The unit is mounted at 152.4 mm above the ground floor.
178MM HIGH HINGED DOOR FLANGE 16MM SOLID STEEL PLATE DOOR W/ GASKET 6.35MM STEEL CASE, 100% WELDED LARGE THICK STEEL WASHER (TYP) SOLID CONCRETE/ BRICK WALL ELEVATION NOTE: MOUNT AT 152.4mm ABOVE GROUND FLOOR DOOR HINGE 178MM HIGH KNOX TAMPER ALERT TO BUILDING FIRE ALARM SYSTEM 3.2mm THICK STAINLESS STELL LOCK COVER HOLE WITH HINGE
