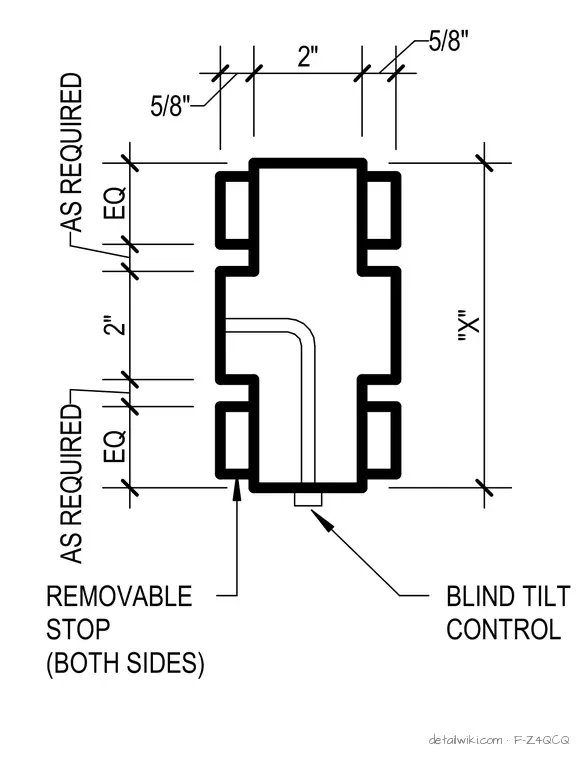

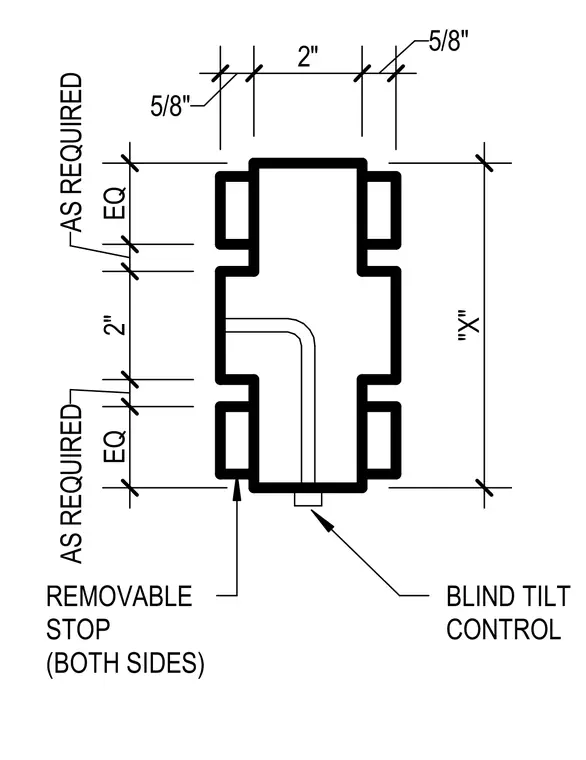

This assembly shows a window frame profile designed to house an internal venetian blind system. The central frame section measures two inches wide, flanked by five-eighths inch wide removable stops on both sides. The overall height of the assembly is variable, denoted as X, with equal spacing provided as required for the blind components. A blind tilt control mechanism is integrated into the bottom of the frame profile to allow for manual adjustment of the internal slats.
Text on the drawing
"X" REMOVABLE STOP (BOTH SIDES) EQ AS REQUIRED 2" AS REQUIRED EQ 5/8" 2" 5/8" BLIND TILT CONTROL
