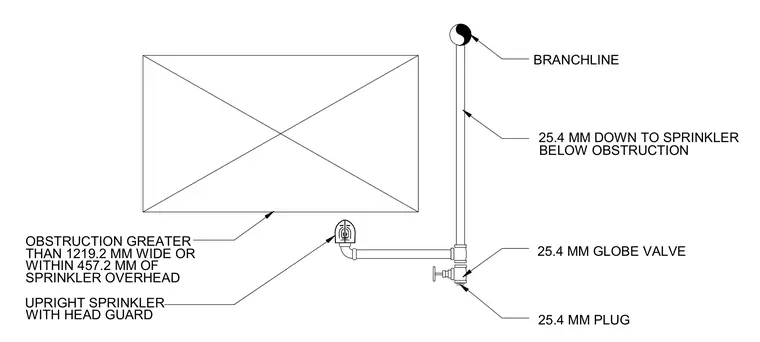

An auxiliary drop line extends downward from the main branchline to feed a sprinkler head positioned underneath a ceiling obstruction greater than 1,219.2 millimeters wide or located within 457.2 millimeters of the overhead sprinkler. The assembly features twenty-five point four millimeter piping dropping to an upright sprinkler equipped with a protective head guard. A twenty-five point four millimeter globe valve and a twenty-five point four millimeter plug are installed at the branch tee connection.
OBSTRUCTION GREATER THAN 1219.2 MM WIDE OR WITHIN 457.2 MM OF SPRINKLER OVERHEAD UPRIGHT SPRINKLER WITH HEAD GUARD 25.4 MM DOWN TO SPRINKLER BELOW OBSTRUCTION 25.4 MM GLOBE VALVE 25.4 MM PLUG BRANCHLINE
