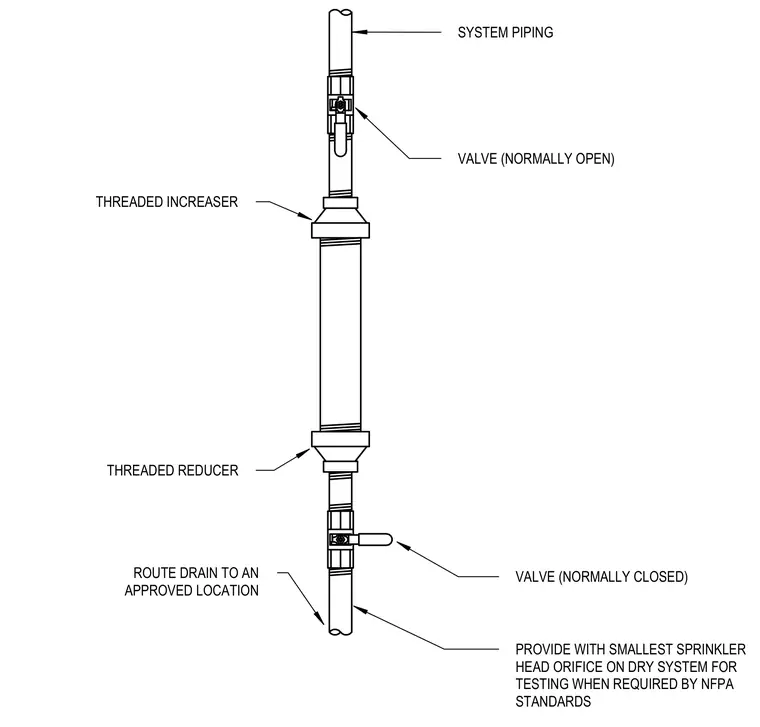

System piping connects to a normally open valve above a threaded increaser leading into the main drum drip reservoir. A threaded reducer at the bottom of the drum drip transitions to a normally closed valve. The drain piping continues downward and routes to an approved location. A note specifies to provide the smallest sprinkler head orifice on the dry system for testing when required by National Fire Protection Association standards.
SYSTEM PIPING VALVE (NORMALLY OPEN) VALVE (NORMALLY CLOSED) PROVIDE WITH SMALLEST SPRINKLER HEAD ORIFICE ON DRY SYSTEM FOR TESTING WHEN REQUIRED BY NFPA STANDARDS THREADED INCREASER THREADED REDUCER ROUTE DRAIN TO AN APPROVED LOCATION
