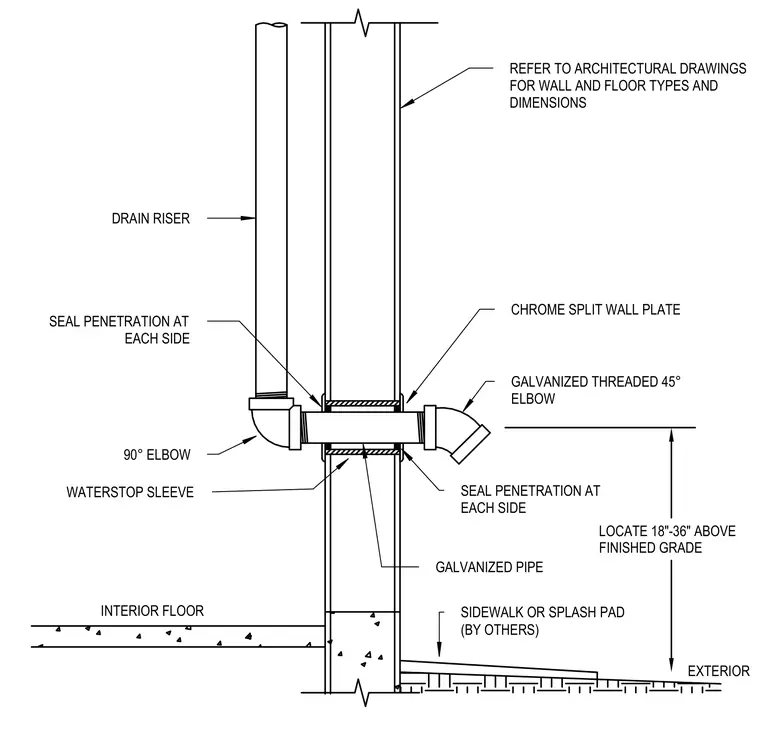

An interior drain riser connects through a ninety-degree elbow to a horizontal galvanized pipe penetrating the exterior wall. A waterstop sleeve surrounds the pipe within the wall, with perimeter penetrations sealed on both sides. A chrome split wall plate covers the interior wall penetration, and a forty-five-degree galvanized threaded elbow terminates the exterior run above a sidewalk or splash pad. The exterior discharge is located eighteen to thirty-six inches above finished grade.
INTERIOR FLOOR EXTERIOR REFER TO ARCHITECTURAL DRAWINGS FOR WALL AND FLOOR TYPES AND DIMENSIONS WATERSTOP SLEEVE DRAIN RISER GALVANIZED PIPE CHROME SPLIT WALL PLATE LOCATE 18"-36" ABOVE FINISHED GRADE SEAL PENETRATION AT EACH SIDE GALVANIZED THREADED 45° ELBOW 90° ELBOW SEAL PENETRATION AT EACH SIDE SIDEWALK OR SPLASH PAD (BY OTHERS)
