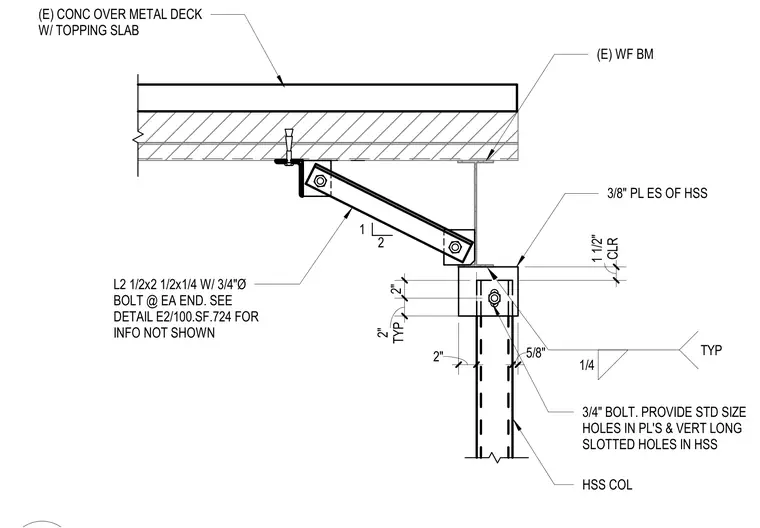

A hollow structural section column supports a wide-flange beam beneath an existing concrete-filled metal deck with topping slab. The connection features three-eighths-inch plates at each side of the hollow structural section, secured with three-quarter-inch diameter bolts using standard-size holes in the plates and vertical long-slotted holes in the hollow structural section. An angle brace measuring two and one-half by two and one-half by one-quarter inches connects with three-quarter-inch diameter bolts at each end. Fillet welds of one-quarter-inch size are typical at the connection joints.
(E) CONC OVER METAL DECK W/ TOPPING SLAB (E) WF BM 1/4 TYP 1 2 L2 1/2x2 1/2x1/4 W/ 3/4"Ø BOLT @ EA END. SEE DETAIL E2/100.SF.724 FOR INFO NOT SHOWN 2" CLR 1 1/2" 2" TYP 2" 3/8" PL ES OF HSS 3/4" BOLT. PROVIDE STD SIZE HOLES IN PL'S & VERT LONG SLOTTED HOLES IN HSS HSS COL 5/8"
