Beam Clamp Hanger Detail

Materials

Steel

Elements

Beams

Connections

Bolted Connection

About this detail

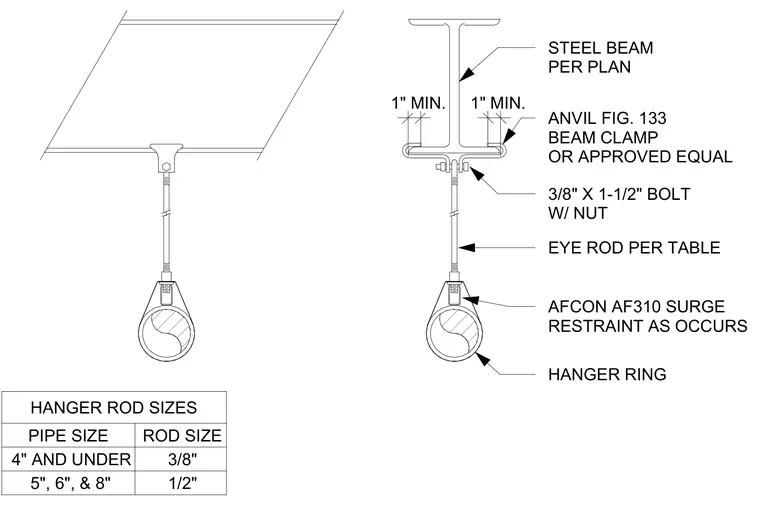

A threaded eye rod suspends a hanger ring holding fire protection piping from an overhead steel beam sized per plan. An Anvil Fig. 133 beam clamp or approved equal grips the bottom flange of the steel beam with a one-inch minimum engagement on each side. The clamp is secured with a 3/8-inch by 1-1/2-inch bolt and nut. The hanger rod size is determined by the pipe size, using a 3/8-inch rod for pipes four inches and under, and a 1/2-inch rod for five-, six-, and eight-inch pipes. An Afcon AF310 surge restraint is included as required.
