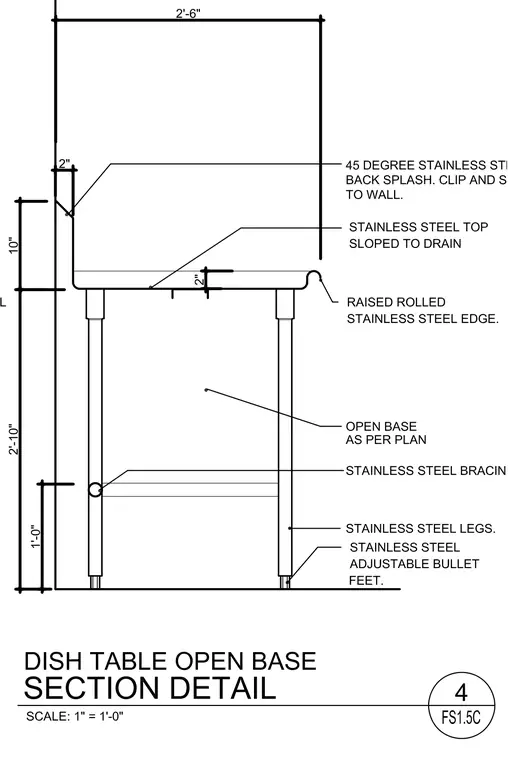

An open-base stainless steel dish table features a 45-degree stainless steel back splash with a clip and seal to the wall. The stainless steel top is sloped to a drain and finished with a raised rolled edge at the front. The open base assembly is supported by stainless steel legs and stainless steel bracing, terminating in stainless steel adjustable bullet feet.
