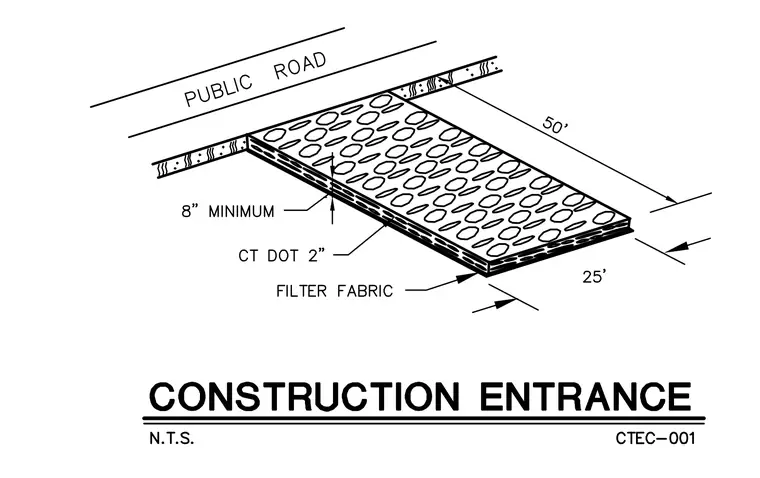

The drawing shows a 50-foot by 25-foot construction entrance pad with a minimum 8-inch thickness, constructed with CT DOT 2 stone aggregate placed on top of a filter fabric. It details the transition from a public road to a stabilized pad designed to prevent sediment tracking onto public roadways. Dimensional callouts indicate the length, width, and minimum thickness requirements.
