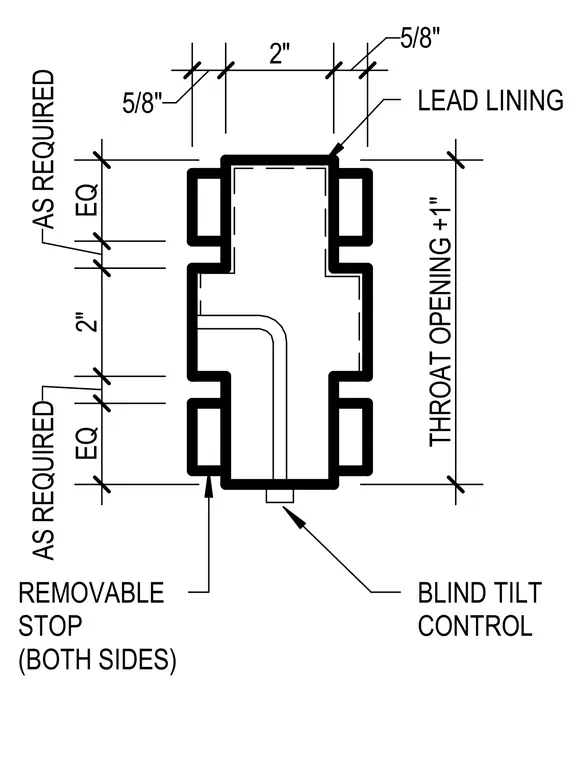

This assembly features a lead-lined head housing designed for a venetian blind installation. The housing includes a two-inch wide central section with five-eighths-inch side profiles. Removable stops are provided on both sides of the assembly to allow for maintenance or blind adjustment. A blind tilt control mechanism is integrated into the bottom of the housing. The throat opening is dimensioned as the required opening plus one inch, with additional spacing adjusted as required to accommodate the specific blind configuration.
Text on the drawing
THROAT OPENING +1" REMOVABLE STOP (BOTH SIDES) EQ AS REQUIRED 2" AS REQUIRED EQ 5/8" 2" 5/8" BLIND TILT CONTROL LEAD LINING
