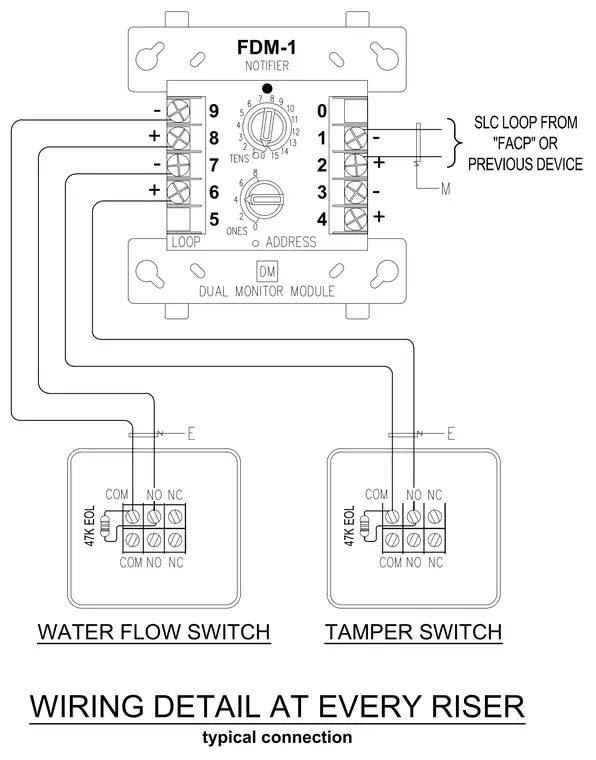

A Signaling Line Circuit (SLC) loop connects from the fire alarm control panel or a previous device to terminals on a dual monitor module. The module interfaces with a water flow switch and a tamper switch, each terminated with a forty-seven kilohm end-of-line resistor.
47K EOL 47K EOL WIRING DETAIL AT EVERY RISER typical connection SLC LOOP FROM "FACP" OR PREVIOUS DEVICE 9 8 7 6 5 0 1 2 3 4 - + - + - + - + FDM-1 TAMPER SWITCH WATER FLOW SWITCH
