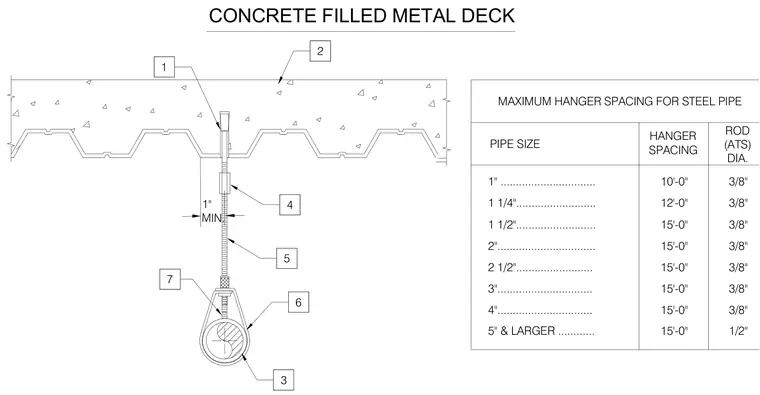

A threaded hanger rod anchors into a concrete filled metal deck supporting a steel pipe via a clevis hanger and coupling. The assembly maintains a minimum one-inch clearance from structural elements. A companion schedule defines maximum hanger spacings and threaded rod diameters for pipe sizes ranging from one inch to five inches and larger.
CONCRETE FILLED METAL DECK TO LCO 1" MIN. 1 1 1/2".......................... 1 1/4".......................... 1" ............................... 10'-0" 12'-0" 15'-0" MAXIMUM HANGER SPACING FOR STEEL PIPE PIPE SIZE 2"................................ 15'-0" HANGER SPACING 2 1/2"......................... 15'-0" 3"............................... 15'-0" 4"............................... 15'-0" ROD (ATS) DIA. 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 5" & LARGER ............ 15'-0" 1/2" 2 4 5 6 3 7
