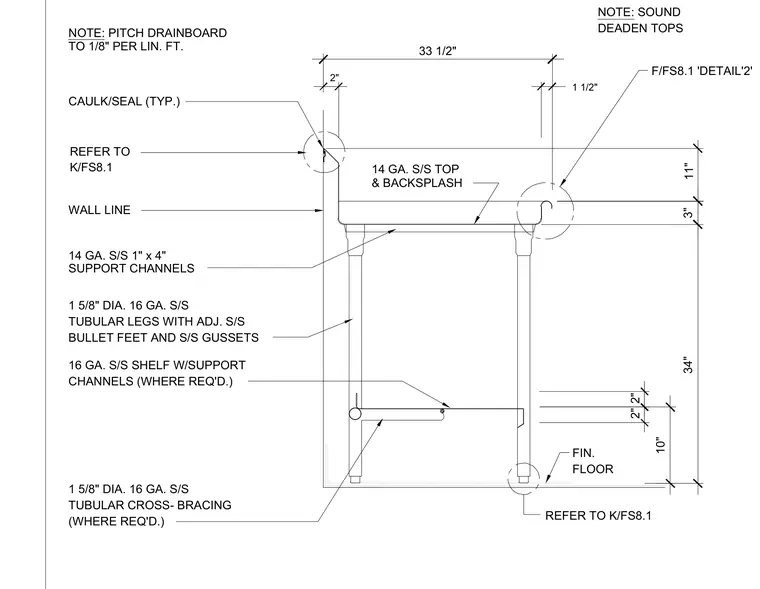

A stainless steel counter assembly mounts against a wall line, featuring a fourteen gauge stainless steel top and backsplash with a sound deadening application. The counter is supported by fourteen gauge stainless steel one by four inch support channels underneath. The structure stands on one and five-eighths inch diameter sixteen gauge stainless steel tubular legs equipped with adjustable stainless steel bullet feet and gussets. An optional sixteen gauge stainless steel shelf with support channels and one and five-eighths inch diameter sixteen gauge stainless steel tubular cross-bracing are included where required. Caulk and sealant are applied typically at the wall junction, and the drainboard is pitched to one-eighth inch per linear foot.
14 GA. S/S TOP & BACKSPLASH SUPPORT CHANNELS WALL LINE 14 GA. S/S 1" x 4" CAULK/SEAL (TYP.) NOTE: PITCH DRAINBOARD TO 1/8" PER LIN. FT. 2" 1 1/2" 3" 10" DEADEN TOPS NOTE: SOUND 34" 11" 2" 2" 1 5/8" DIA. 16 GA. S/S TUBULAR CROSS- BRACING (WHERE REQ'D.) 33 1/2" 1 5/8" DIA. 16 GA. S/S TUBULAR LEGS WITH ADJ. S/S BULLET FEET AND S/S GUSSETS 16 GA. S/S SHELF W/SUPPORT CHANNELS (WHERE REQ'D.) FIN. FLOOR F/FS8.1 'DETAIL'2' REFER TO K/FS8.1 REFER TO K/FS8.1
