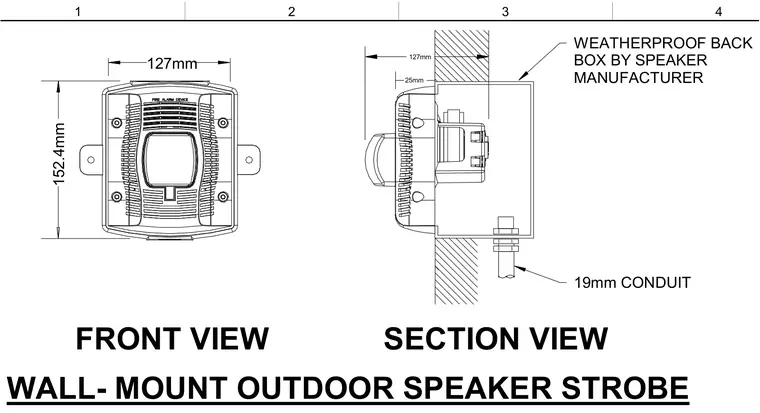

An outdoor speaker strobe is mounted directly to a wall assembly using a weatherproof back box provided by the speaker manufacturer. The unit is fed by a 19mm conduit entering through the bottom of the enclosure. The fixture dimensions measure 152.4mm in height by 127mm in width, with a 25mm projection from the wall surface to the housing face and a total depth of 127mm.
WEATHERPROOF BACK BOX BY SPEAKER MANUFACTURER 25mm 127mm WALL- MOUNT OUTDOOR SPEAKER STROBE FRONT VIEW 19mm CONDUIT SECTION VIEW 127mm 152.4mm 1 2 3 4
