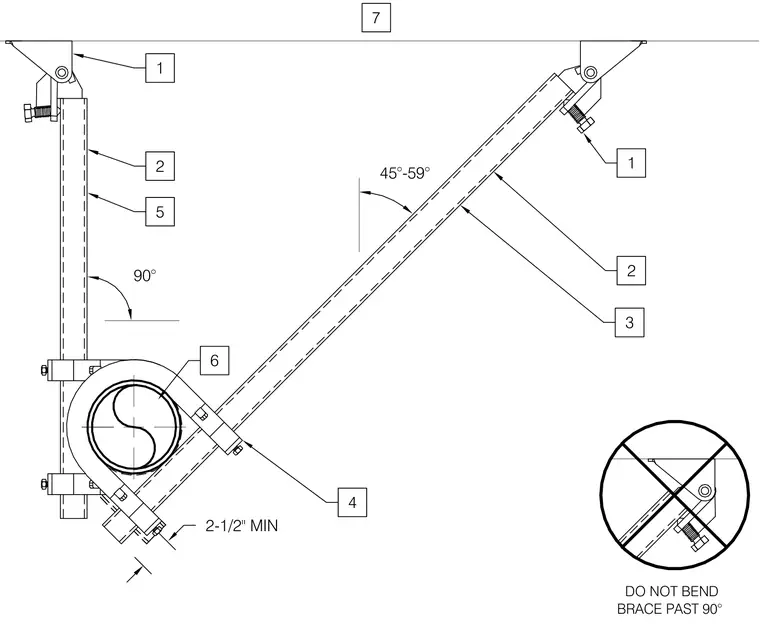

A structural attachment connects to the overhead structure, accompanied by vertical and diagonal brace pipes, a pipe clamp securing the system pipe, and fastening hardware. The diagonal brace is installed at an angle between forty-five and fifty-fives degrees, maintaining a minimum extension of two and a half inches past the fastener. A restrictive note cautions against bending the brace past ninety degrees.
