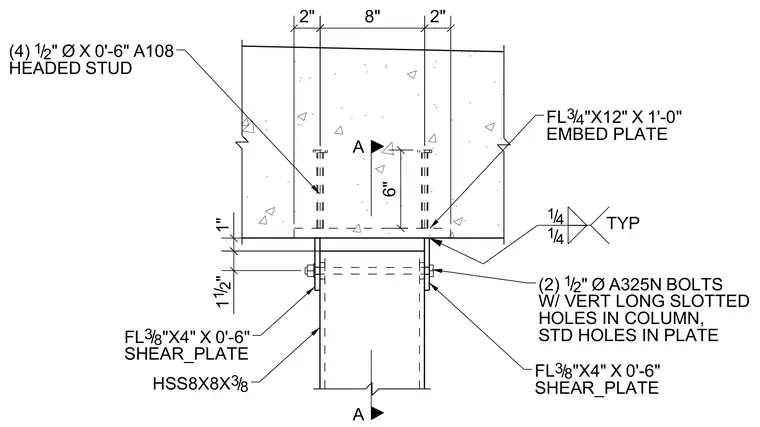

An HSS8x8x3/8 hollow structural section column connects to a concrete roof slab using an embedded steel plate and bolted shear plates. The connection features a three-quarter-inch by twelve-inch by one-foot-zero-inch flat embed plate anchored into the concrete with four one-half-inch diameter by zero-foot-six-inch A108 headed studs. Two three-eighths-inch by four-inch by zero-foot-six-inch flat shear plates weld to the embed plate with typical quarter-inch fillet welds and bolt to the column. The column contains vertical long slotted holes while the shear plates have standard holes, secured with two one-half-inch diameter A325N bolts.
2" 8" 2" 6" 1" 1 12 / " (4) 1 2 / " Ø X 0'-6" A108 HEADED STUD FL 3 4 / "X12" X 1'-0" EMBED PLATE A A 14 / 14 / TYP FL 3 8 / "X4" X 0'-6" SHEAR_PLATE HSS8X8X 3 8 / FL 3 8 / "X4" X 0'-6" SHEAR_PLATE (2) 1 2 / " Ø A325N BOLTS W/ VERT LONG SLOTTED HOLES IN COLUMN, STD HOLES IN PLATE
