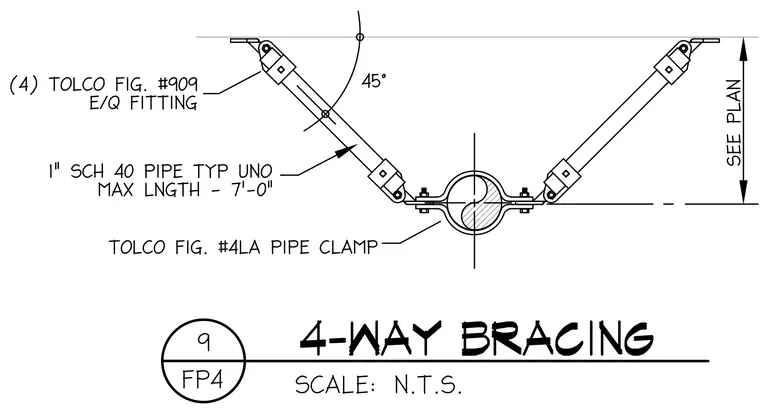

A four-way seismic bracing assembly for fire protection piping features a Tolco Fig. 4LA pipe clamp fastening around the main system pipe, connected to four Tolco Fig. 909 earthquake fittings. One-inch schedule 40 bracing pipes extend outward at a forty-five degree angle, with a maximum length of seven feet. Structural attachment fittings anchor each brace back to the overhead structure at spacing determined per plan.
