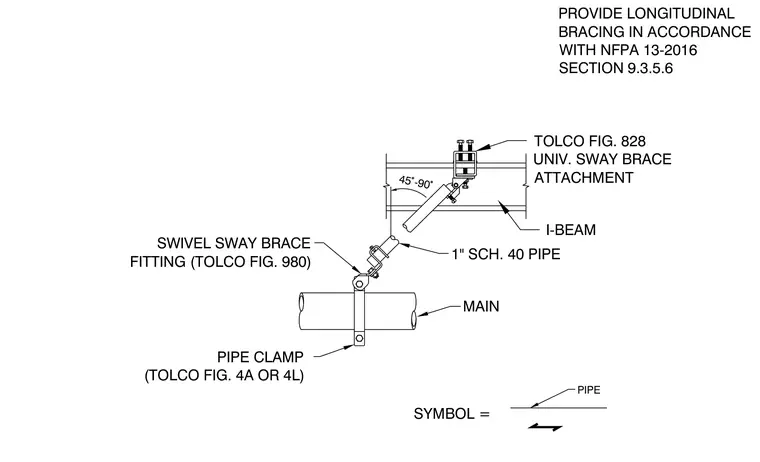

A one-inch schedule 40 pipe acts as a longitudinal sway brace between an overhead I-beam and a fire sprinkler main pipe. The brace connects to the structural steel using a universal sway brace attachment. At the lower end, a swivel sway brace fitting joins the brace to a pipe clamp secured around the main pipe. The brace angle is maintained between forty-five and ninety degrees from the horizontal. Longitudinal bracing must be installed in accordance with NFPA 13-2016 section 9.3.5.6.
SYMBOL = PIPE 1" SCH. 40 PIPE PIPE CLAMP (TOLCO FIG. 4A OR 4L) MAIN SWIVEL SWAY BRACE FITTING (TOLCO FIG. 980) 45 -90 I-BEAM TOLCO FIG. 828 UNIV. SWAY BRACE ATTACHMENT PROVIDE LONGITUDINAL BRACING IN ACCORDANCE WITH NFPA 13-2016 SECTION 9.3.5.6
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
