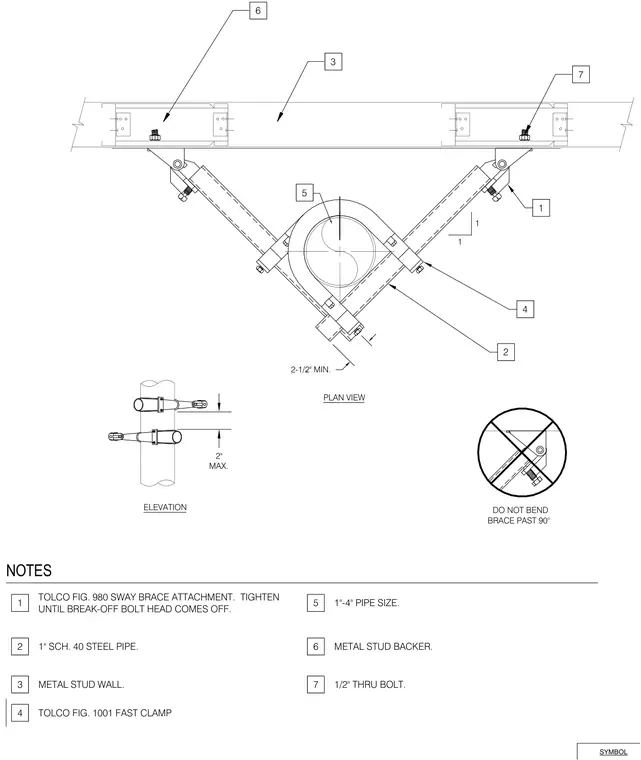

A four-way sway bracing assembly is attached to a metal stud wall, utilizing a Tolco Fig. 980 sway brace attachment secured with a half-inch through bolt and tightened until the break-off bolt head shears off. The brace incorporates a one-inch Schedule 40 steel pipe connected via a Tolco Fig. 1001 fast clamp, anchored to a metal stud backer within the stud wall. The brace must not be bent past ninety degrees during installation.
SYMBOL 2 4 1 5 3 6 7 1 5 2 6 3 7 4 1 1 2-1/2" MIN. 2" MAX. PLAN VIEW ELEVATION DO NOT BEND BRACE PAST 90° NOTES TOLCO FIG. 980 SWAY BRACE ATTACHMENT. TIGHTEN UNTIL BREAK-OFF BOLT HEAD COMES OFF. 1"-4" PIPE SIZE. 1" SCH. 40 STEEL PIPE. METAL STUD BACKER. METAL STUD WALL. 1/2" THRU BOLT. TOLCO FIG. 1001 FAST CLAMP
