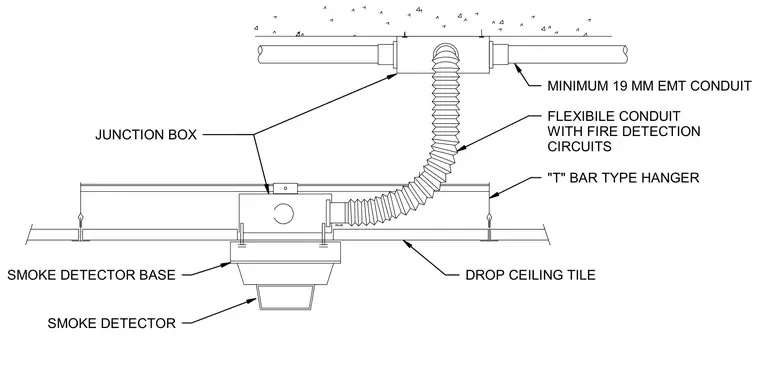

A smoke detector base mounts directly to a drop ceiling tile supported by a T-bar type hanger. Flexible conduit containing fire detection circuits routes wiring from the ceiling junction box to a junction box mounted above the ceiling tile. A minimum 19 mm electrical metallic tubing conduit feeds the upper junction box.
SMOKE DETECTOR DROP CEILING TILE JUNCTION BOX SMOKE DETECTOR BASE MINIMUM 19 MM EMT CONDUIT "T" BAR TYPE HANGER FLEXIBILE CONDUIT WITH FIRE DETECTION CIRCUITS
