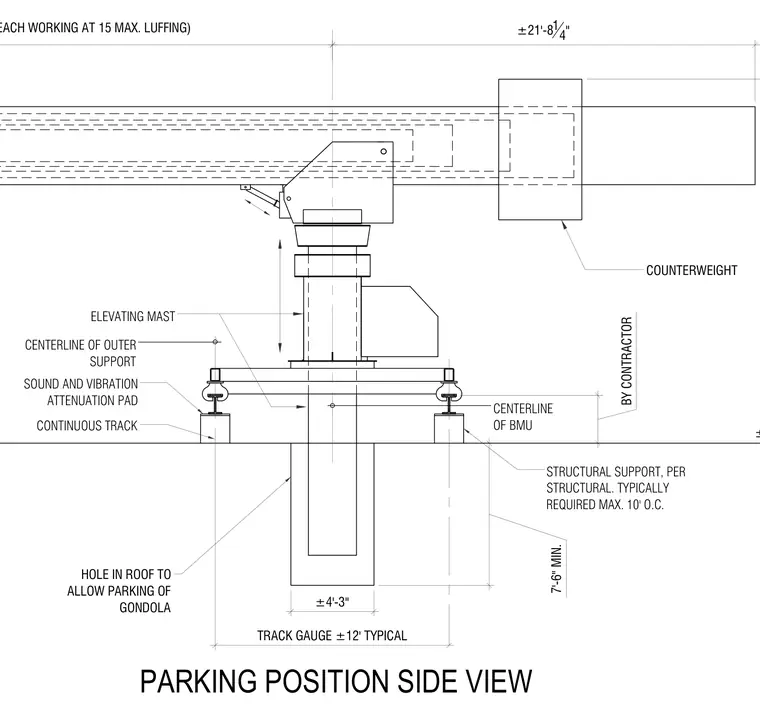

A track and support assembly sits on the roof structure in the building maintenance unit parking position side view. The system features a continuous track with a sound and vibration attenuation pad supported by structural elements spaced at a maximum of ten feet on center. An elevating mast extends through a hole in the roof to allow parking of the gondola, adjacent to the counterweight and structural boom.
±35'-714" STORED LENGTH (32'-9" MIN. REACH WORKING AT 15 MAX. LUFFING) ±21'-814" COUNTERWEIGHT ±591'-0" ELEVATING MAST BY CONTRACTOR STRUCTURAL SUPPORT, PER STRUCTURAL. TYPICALLY REQUIRED MAX. 10' O.C. PARKING POSITION SIDE VIEW CENTERLINE OF BMU TRACK GAUGE ±12' TYPICAL CENTERLINE OF OUTER SUPPORT CONTINUOUS TRACK SOUND AND VIBRATION ATTENUATION PAD 7'-6" MIN. ±4'-3" HOLE IN ROOF TO ALLOW PARKING OF GONDOLA
