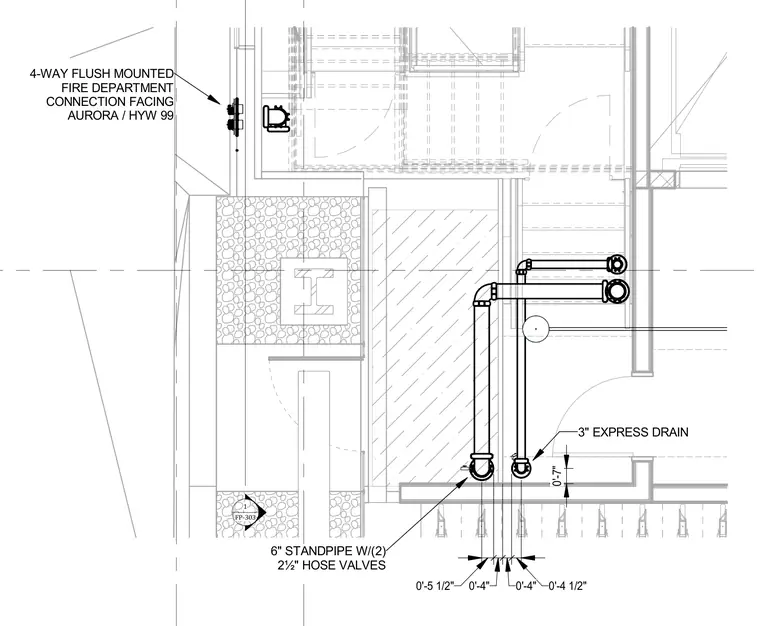

A six-inch standpipe equipped with two two-and-a-half-inch hose valves runs alongside a three-inch express drain within the stair assembly. A four-way flush-mounted fire department connection is positioned on the exterior wall facing Aurora and Highway 99. Dimensional callouts establish precise spacing for the vertical pipe runs and fittings.
FP-303 1 0'-5 1/2" 0'-4" 0'-4" 0'-4 1/2" 0'-7" 6" STANDPIPE W/(2) 2½" HOSE VALVES 3" EXPRESS DRAIN 4-WAY FLUSH MOUNTED FIRE DEPARTMENT CONNECTION FACING AURORA / HYW 99
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
