L Rating At Ambient - Less Than 1 Cfm/Sq Ft

About this detail

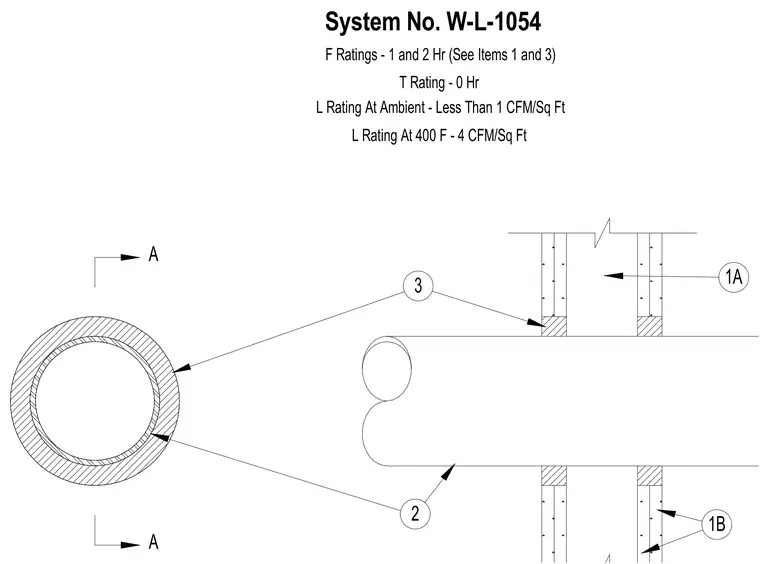

System No. W-L-1054 provides a firestop assembly for penetrations through one or two-hour rated walls. The configuration achieves F ratings of one and two hours, a T rating of zero hours, an ambient L rating of less than one CFM per square foot, and an L rating at 400 degrees Fahrenheit of four CFM per square foot. Callouts reference items 1A, 1B, 2, and 3 for the penetrant and surrounding wall construction.
