Fire Protection · F-T3QZH

Pendent Sprinkler in T-Bar Ceiling

Elements

About this detail

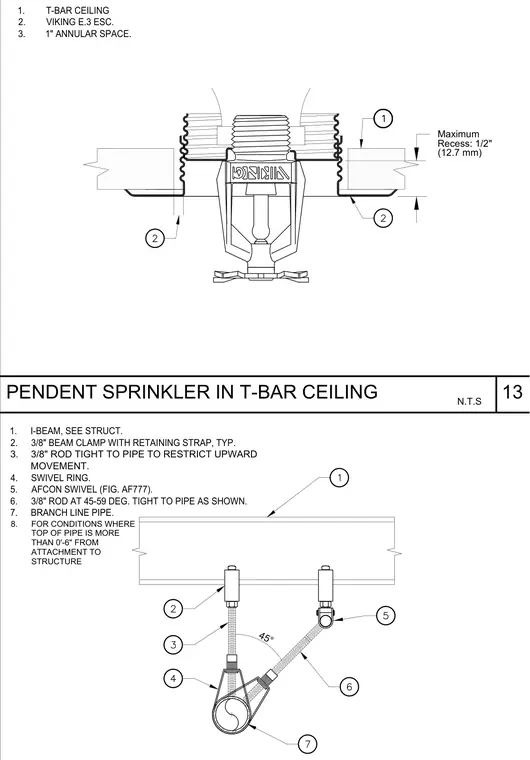

A pendent sprinkler head penetrates a T-bar suspended ceiling grid with a Viking E.3 escutcheon and a one-inch annular space, allowing a maximum recess of one-half inch. The branch line pipe is supported from an overhead structural I-beam using a three-eighths-inch beam clamp with a retaining strap. A three-eighths-inch threaded rod runs tight to the pipe to restrict upward movement, paired with a swivel ring and an Afcon swivel fitting. A second three-eighths-inch rod is installed at a forty-five to fifty-nine degree angle tight to the pipe for seismic restraint when the top of the pipe is more than six inches from the structural attachment.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
