Fire Protection · F-SZHNS

Flexible Sprinkler Head Drop and Armover Connection

Materials

About this detail

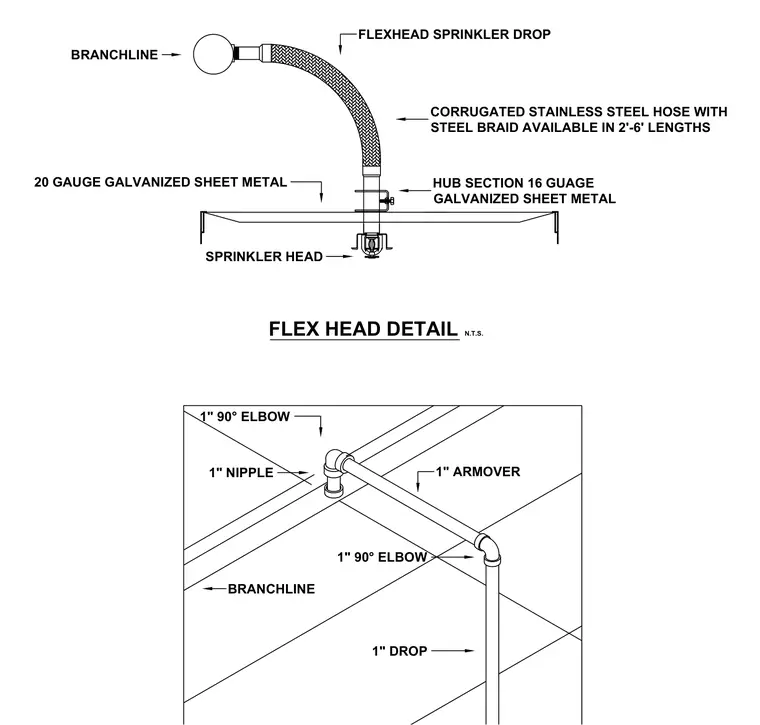

A flexible sprinkler head drop connects to a main branchline using a corrugated stainless steel hose with steel braid, available in two to six foot lengths. The flexible hose connects to a sixteen gauge galvanized sheet metal hub section and a twenty gauge galvanized sheet metal component supporting the sprinkler head. Below the flexible assembly, a rigid armover configuration connects to the branchline via a one-inch nipple, one-inch ninety-degree elbows, a one-inch armover pipe, and a one-inch drop.
