Trapeze Pipe Hanger

Materials

Timber / Wood

Elements

Beams

Connections

Bolted Connection

About this detail

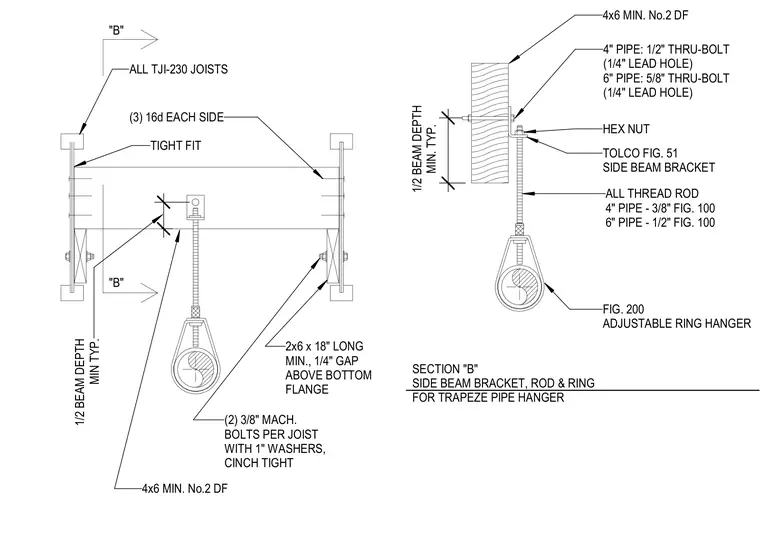

A trapeze pipe hanger assembly is supported by wood I-joists and timber framing. A Tolco Fig. 51 side beam bracket is bolted to a 4x6 minimum No. 2 Douglas Fir timber using a 1/2 inch thru-bolt for 4-inch pipe or a 5/8 inch thru-bolt for 6-inch pipe with a 1/4 inch lead hole. An all-thread rod, sized 3/8 inch for 4-inch pipe or 1/2 inch for 6-inch pipe, extends down to a Fig. 200 adjustable ring hanger supporting the pipe. A 2x6 by 18-inch minimum wood block with a 1/4 inch gap above the bottom flange is secured between the TJI-230 joists using two 3/8 inch machine bolts with 1-inch washers tightened cinch tight and three 16d nails on each side for structural stability.
