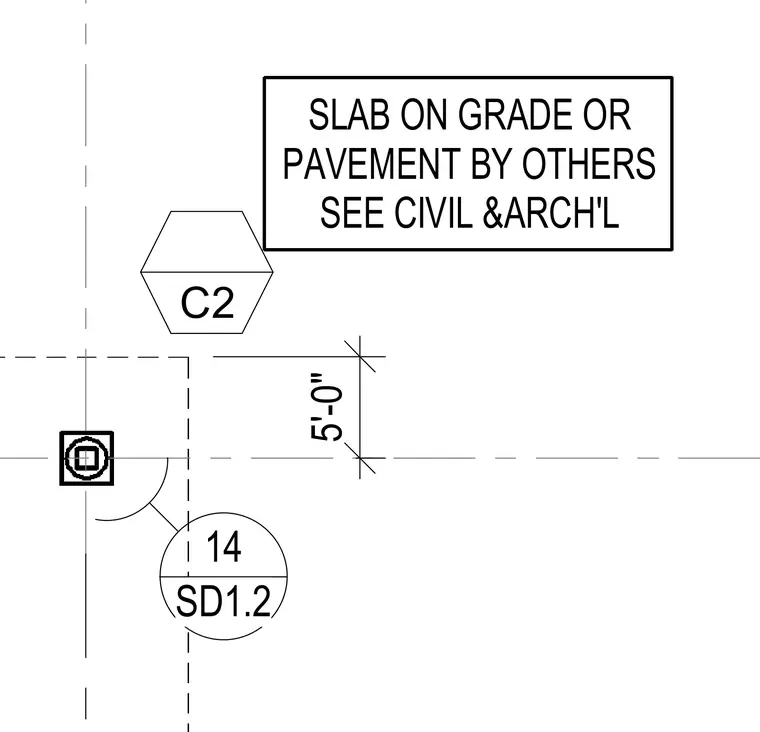

Slab on grade or pavement scopes are coordinated per civil and architectural drawings, located five feet from grid lines with reference to drawing SD1.2.
