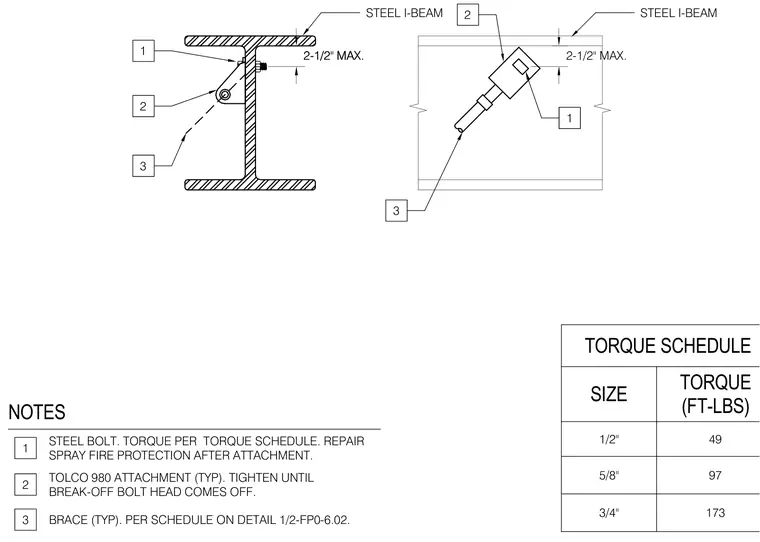

A Tolco 980 attachment clamp secures a brace to the flange of a steel I-beam using a steel bolt tightened until the break-off bolt head shears off. A maximum distance of two and one-half inches is maintained from the bolt attachment to the beam edge. Torque is applied according to the schedule based on bolt size, specifying forty-nine foot-pounds for one-half-inch bolts, ninety-seven foot-pounds for five-eighths-inch bolts, and one hundred seventy-three foot-pounds for three-quarter-inch bolts. Spray fire protection is repaired after attachment.
2-1/2" MAX. 2-1/2" MAX. 3 1 2 3 2 1 1 2 3 2-1/2" MAX. TORQUE SCHEDULE SIZE TORQUE (FT-LBS) 1/2" 49 5/8" 97 3/4" 173 STEEL I-BEAM STEEL I-BEAM NOTES STEEL BOLT. TORQUE PER TORQUE SCHEDULE. REPAIR SPRAY FIRE PROTECTION AFTER ATTACHMENT. TOLCO 980 ATTACHMENT (TYP). TIGHTEN UNTIL BREAK-OFF BOLT HEAD COMES OFF. BRACE (TYP). PER SCHEDULE ON DETAIL 1/2-FP0-6.02.
