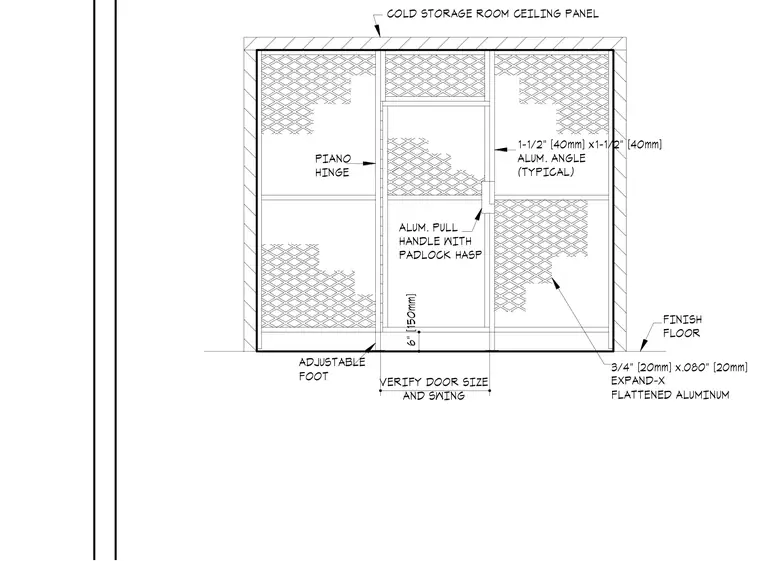

An aluminum wire partition system spans between the finish floor and the cold storage room ceiling panel. The assembly features expanded aluminum mesh secured with typical 1-1/2 inch by 1-1/2 inch aluminum angles. The access door includes a piano hinge, an adjustable foot providing a 6-inch clearance above the floor, and an aluminum pull handle with a padlock hasp. Door size and swing must be verified in the field prior to installation.
1-1/2" [40mm] x1-1/2" [40mm] ALUM. ANGLE (TYPICAL) PIANO HINGE COLD STORAGE ROOM CEILING PANEL FINISH FLOOR ALUM. PULL HANDLE WITH PADLOCK HASP 6" [150mm] ADJUSTABLE FOOT 3/4" [20mm] x.080" [20mm] EXPAND-X FLATTENED ALUMINUM VERIFY DOOR SIZE AND SWING
