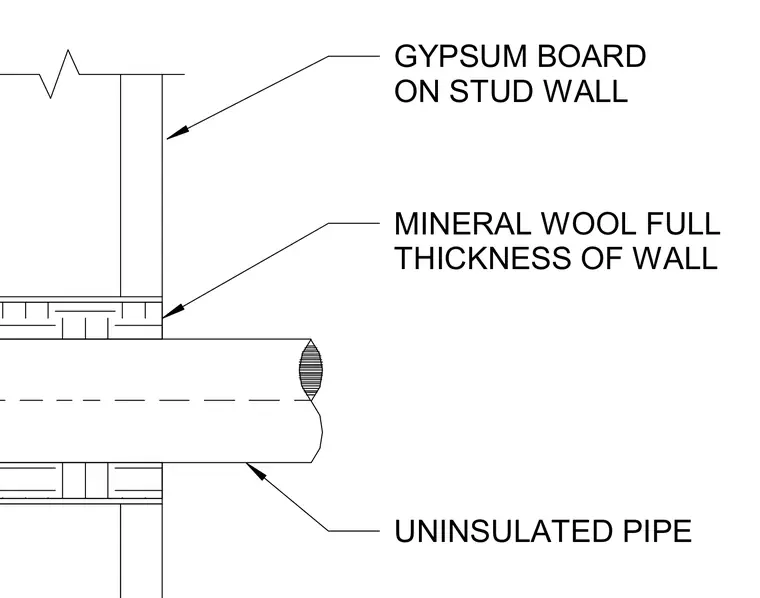

An uninsulated pipe penetrates a stud wall framed with gypsum board on each side. The annular space around the pipe is filled with mineral wool packed to the full thickness of the wall assembly.
