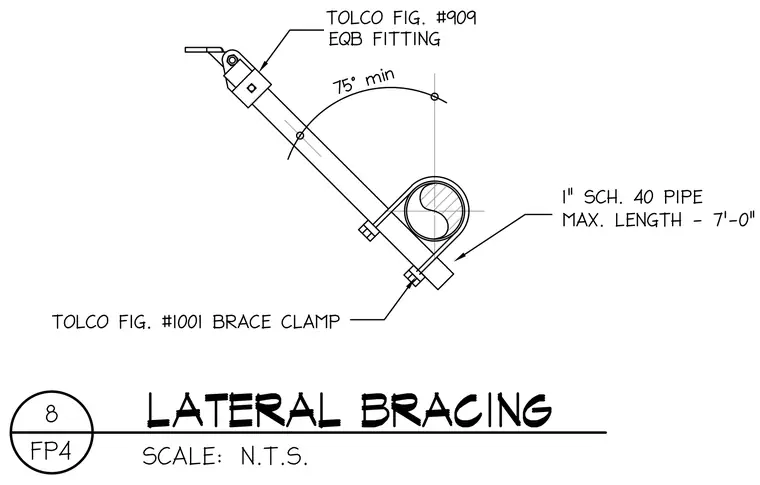

A one-inch schedule 40 pipe is secured with a Tolco Fig. #1001 brace clamp and a maximum length of seven feet. A Tolco Fig. #909 EQB fitting connects the brace assembly at a minimum angle of 75 degrees.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
