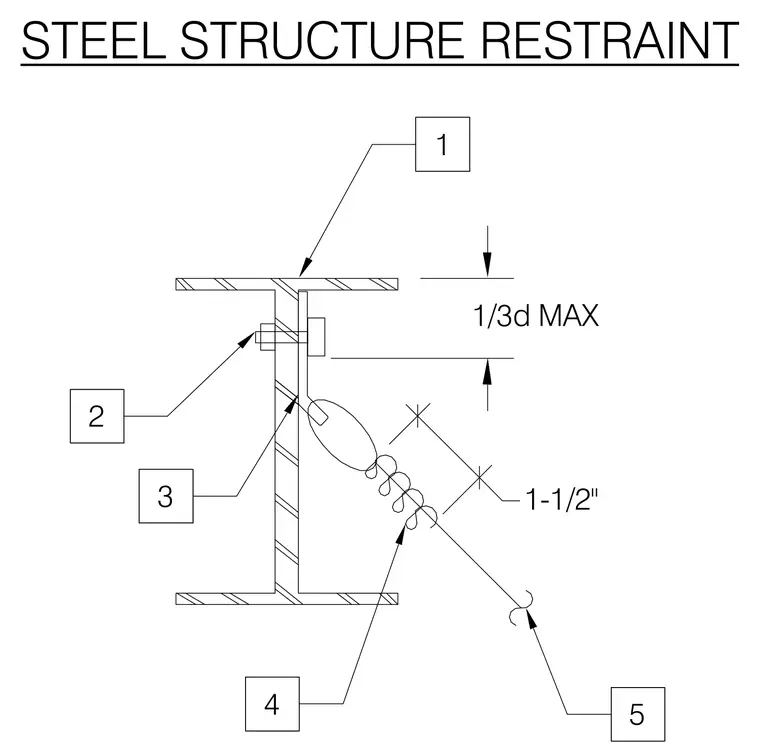

A cable restraint is anchored to the web of a structural steel beam with a bolted connection located a maximum of one-third the beam depth from the top flange. The restraint cable includes a spring element and maintains a one and one-half inch clearance.
