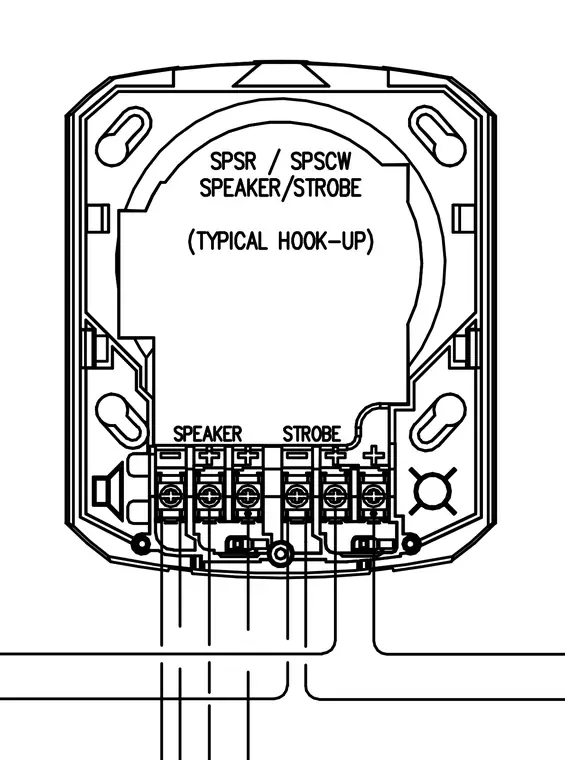

Wiring connections for SPSR and SPSCW speaker-strobe notification appliances terminate at labeled screw terminals along the bottom edge of the device housing. Dedicated terminals accommodate speaker connections and positive and negative strobe circuits. Supply wiring enters from below through knockout openings and routes directly to the corresponding terminal blocks.
