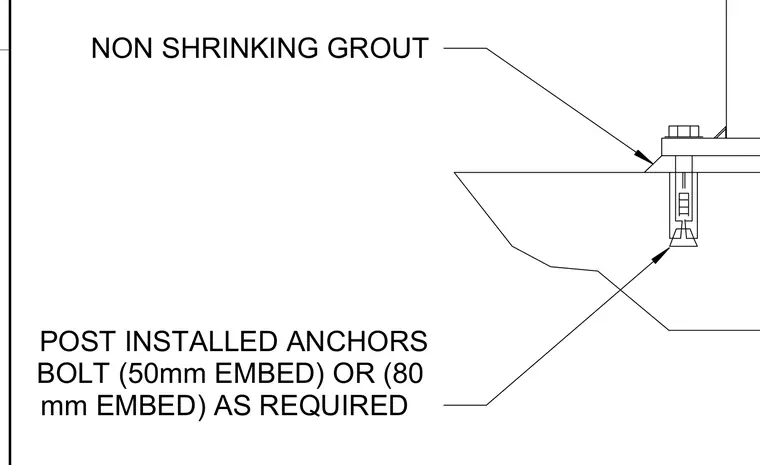

Post-installed anchors secure structural elements to concrete or masonry substrates using mechanical expansion bolts set to a depth of fifty or eighty millimeters as required. A layer of non-shrinking grout is applied at the baseplate to provide even load distribution and leveling. The assembly transfers loads from the baseplate directly into the structural substrate.
NON SHRINKING GROUT POST INSTALLED ANCHORS BOLT (50mm EMBED) OR (80 mm EMBED) AS REQUIRED B
