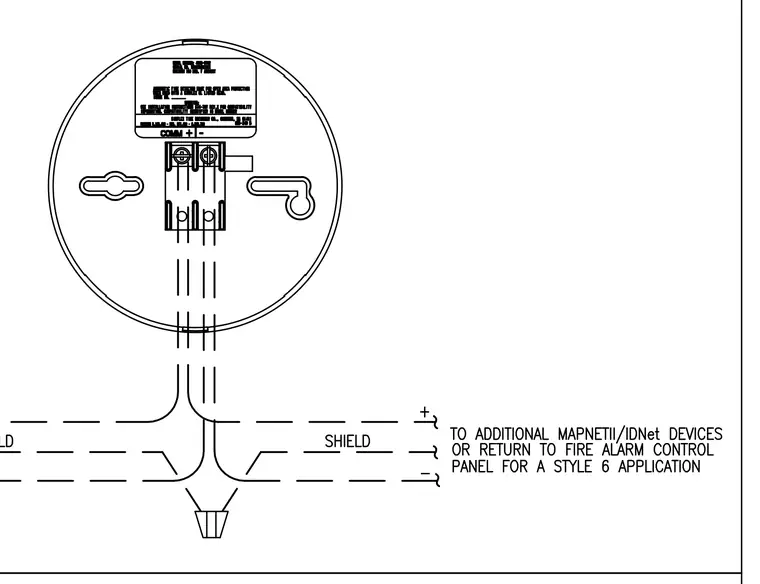

This diagram details the terminal connections and wiring layout for a fire alarm notification appliance base. The round mounting plate features screw terminals labeled for communication positive and negative connections. Shielded wiring routes from the device to additional network devices or returns to the fire alarm control panel for a Style 6 application.
