Fire Protection · F-RBTK2

Pipe Support Assembly at Metal Deck Roof

Materials

Steel Metal (misc.)

Elements

Roofs Decks Trusses

Connections

HSS Connection

About this detail

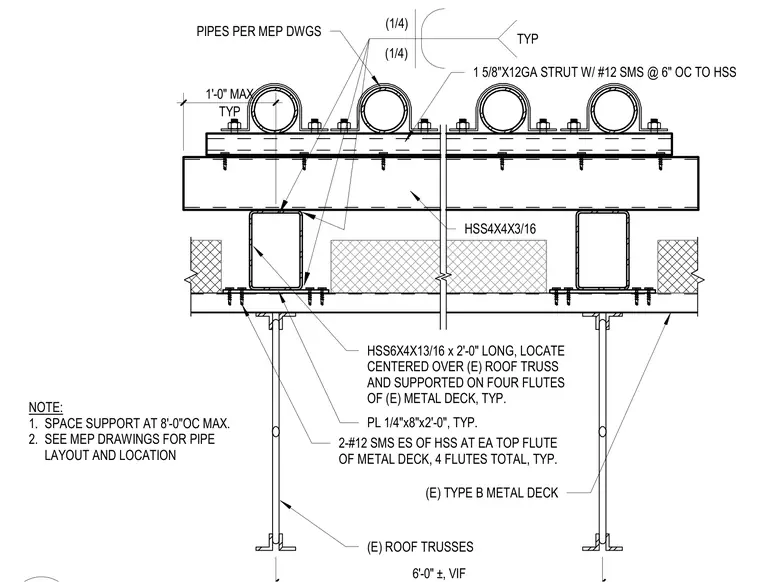

A pipe support assembly bears on an existing metal deck and roof trusses. A hollow structural section measuring 6x4x13/16 by 2 feet long sits centered over the existing roof truss, supported on four flutes of the existing type B metal deck. A 1/4-inch by 8-inch by 2-foot plate is welded to the assembly with fillet welds on each side. Two number 12 sheet metal screws secure each side of the hollow structural section at each top flute of the metal deck across four flutes total. Vertical hollow structural sections measuring 4x4x3/16 support an overhead strut system of 1-5/8 inch by 12 gauge attached with number 12 sheet metal screws at 6 inches on center to support mechanical, electrical, and plumbing pipes.
