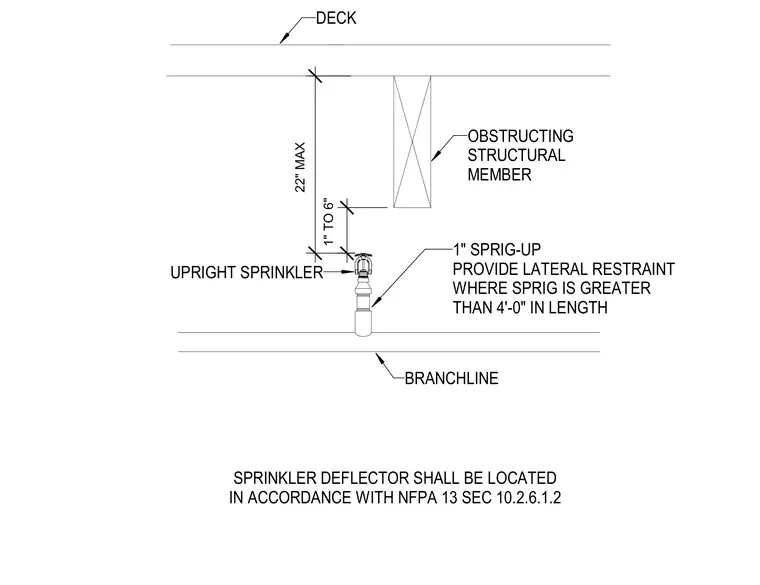

An upright sprinkler is fed by a 1-inch branchline via a sprig-up drop positioned beneath a structural deck. An obstructing structural member is located directly adjacent to the sprig, requiring a 1-inch to 6-inch clearance from the obstruction to the sprinkler deflector. Lateral restraint must be provided for sprigs greater than 4 feet in length. The maximum distance from the deck to the sprinkler deflector is 22 inches, with deflector placement complying with NFPA 13 requirements.
BRANCHLINE 1" SPRIG-UP PROVIDE LATERAL RESTRAINT WHERE SPRIG IS GREATER THAN 4'-0" IN LENGTH OBSTRUCTING STRUCTURAL MEMBER 1" TO 6" 22" MAX DECK SPRINKLER DEFLECTOR SHALL BE LOCATED IN ACCORDANCE WITH NFPA 13 SEC 10.2.6.1.2 UPRIGHT SPRINKLER
