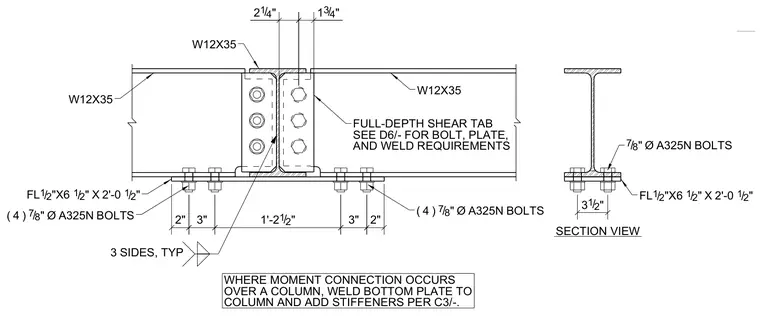

Two W12X35 steel beams connect end-to-end with a full-depth shear tab on the web secured by four 7/8-inch diameter A325N bolts on three sides. A bottom plate measuring 1-1/2 inches by 6-1/2 inches by 2 feet 0-1/2 inches spans across the bottom flanges, fastened with four 7/8-inch diameter A325N bolts on each side. Where the moment connection occurs over a column, the bottom plate welds to the column with stiffeners added per detail C3. A section view shows the placement of the bottom plate and bolts relative to the beam flanges.
3" 1'-2 1 2 / " 3" 2" FL 1 2 / "X6 1 2 / " X 2'-0 1 2 / " WHERE MOMENT CONNECTION OCCURS OVER A COLUMN, WELD BOTTOM PLATE TO COLUMN AND ADD STIFFENERS PER C3/-. ( 4 ) 7 8 / " Ø A325N BOLTS 3 SIDES, TYP ( 4 ) 7 8 / " Ø A325N BOLTS W12X35 W12X35 W12X35 FULL-DEPTH SHEAR TAB SEE D6/- FOR BOLT, PLATE, AND WELD REQUIREMENTS 2 1 4 / " 1 3 4 / " 2" 3 1 2 / " FL 1 2 / "X6 1 2 / " X 2'-0 1 2 / " SECTION VIEW 78 / " Ø A325N BOLTS
