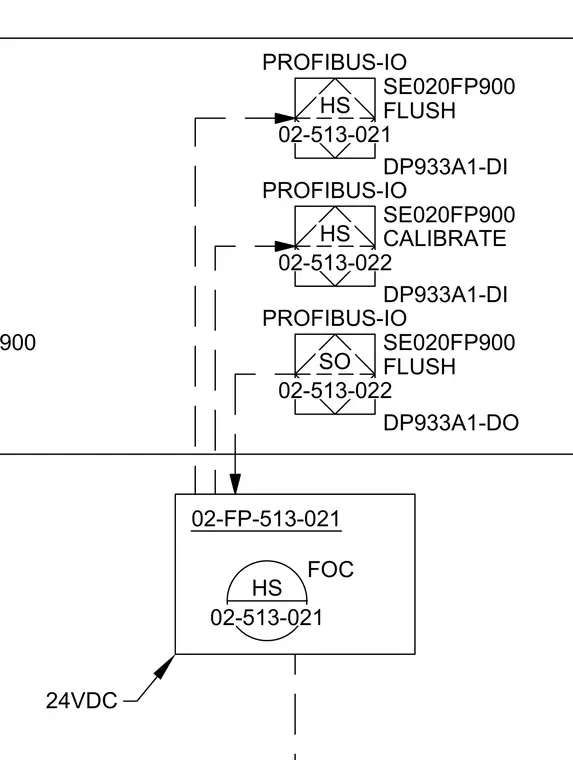

Profibus IO control loop diagram showing digital input and output modules connected with tag numbers 02-513-021 and 02-513-022. The system operates on 24VDC power supply and integrates flush and calibrate device functions designated as SE020FP900 DP933A1-DI and DP933A1-DO.
SE020FP900 HS 02-513-021 FOC SO 02-513-022 FLUSH PROFIBUS-IO DP933A1-DO SE020FP900 HS 02-513-022 CALIBRATE PROFIBUS-IO DP933A1-DI SE020FP900 02-FP-513-021 24VDC HS 02-513-021 FLUSH PROFIBUS-IO DP933A1-DI SE020FP900
