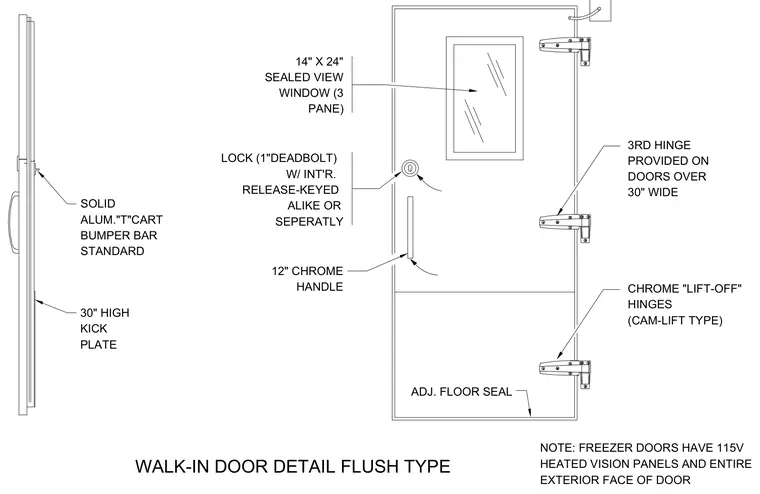

This walk-in flush-type door assembly features chrome lift-off cam-lift hinges with a third hinge provided on doors over thirty inches wide. The door includes a fourteen by twenty-four inch sealed three-pane view window, a standard lock with a one-inch deadbolt and interior release, a twelve-inch chrome handle, a thirty-inch high kick plate, and a solid aluminum T-cart bumper bar. An adjustable floor seal is installed at the bottom, and freezer doors include a 115-volt heated vision panel and exterior face.
ADJ. FLOOR SEAL WALK-IN DOOR DETAIL FLUSH TYPE 14" X 24" SEALED VIEW WINDOW (3 PANE) CHROME "LIFT-OFF" HINGES (CAM-LIFT TYPE) 3RD HINGE PROVIDED ON DOORS OVER 30" WIDE 30" HIGH KICK PLATE SOLID ALUM."T"CART BUMPER BAR STANDARD LOCK (1"DEADBOLT) W/ INT'R. RELEASE-KEYED ALIKE OR SEPERATLY 12" CHROME HANDLE NOTE: FREEZER DOORS HAVE 115V HEATED VISION PANELS AND ENTIRE EXTERIOR FACE OF DOOR
