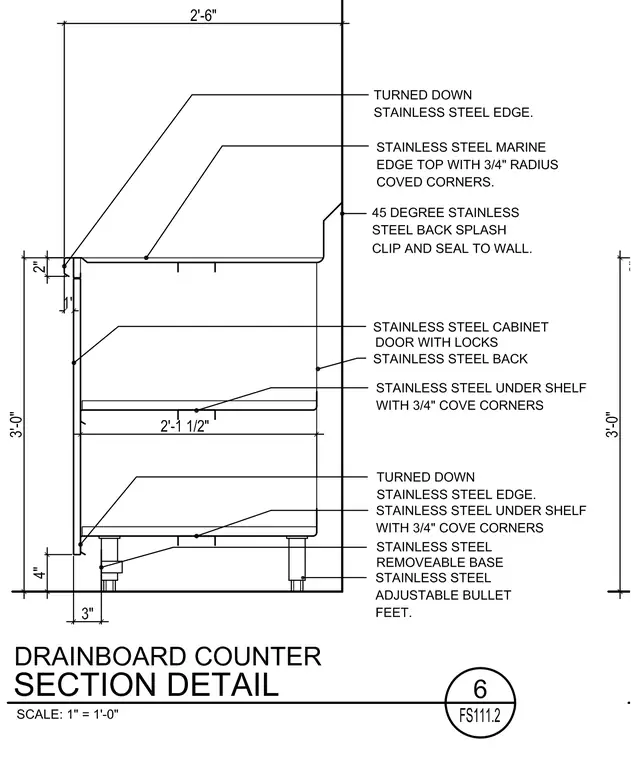

This drainboard counter section detail features a stainless steel marine edge top with three-quarter-inch radius coved corners and a turned down stainless steel edge. A forty-five-degree stainless steel back splash clips and seals to the wall. The assembly includes a stainless steel cabinet with lockable doors, a back, and an undershelf with three-quarter-inch cove corners. The lower section incorporates a turned down stainless steel edge, a stainless steel undershelf, a removable stainless steel base, and stainless steel adjustable bullet feet. Overall dimensions include a two-foot six-inch top width and a three-foot counter height.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
