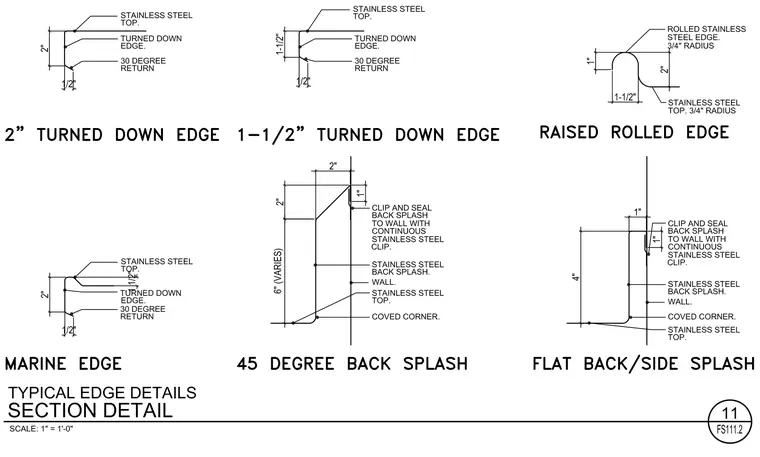

These stainless steel countertop edge and backsplash profiles show multiple configurations including a two-inch turned down edge, one-and-a-half-inch turned down edge, raised rolled edge with three-quarter-inch radius, marine edge, forty-five-degree backsplash, and flat back or side backsplash. Each profile indicates specific dimensional heights and returns, such as half-inch and thirty-degree returns. The backsplash sections show continuous stainless steel mounting clips anchored to the wall with clip and seal configurations, intersecting stainless steel tops at coved corners.
