Fire Protection · F-PA3XH

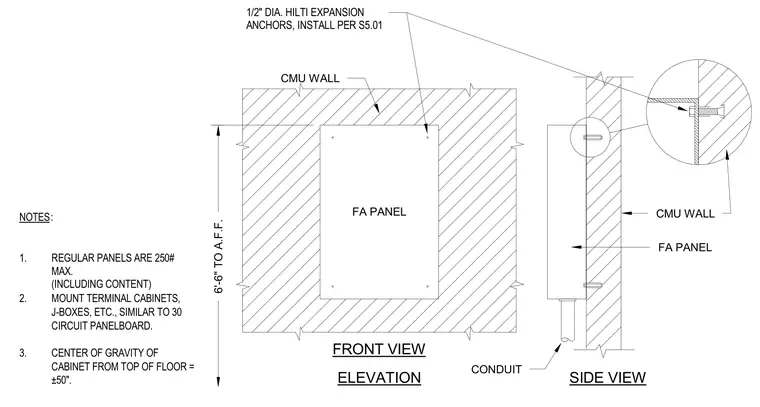

Fire Alarm Panel Mounting on CMU Wall

Materials

Elements

Walls Floors / Slabs Millwork / Casework Anchors / Embeds

About this detail

A fire alarm panel mounts directly to a concrete masonry unit wall at a height of six feet six inches to the top of the finished floor. The cabinet is secured using half-inch diameter Hilti expansion anchors installed per structural specifications. Conduit enters the enclosure from the bottom, and regular panels are limited to two hundred fifty pounds maximum including content.
