Fire Protection · F-P78EM

Steel Beam Clamp, Rod, Coupling, and Ring

Materials

Elements

About this detail

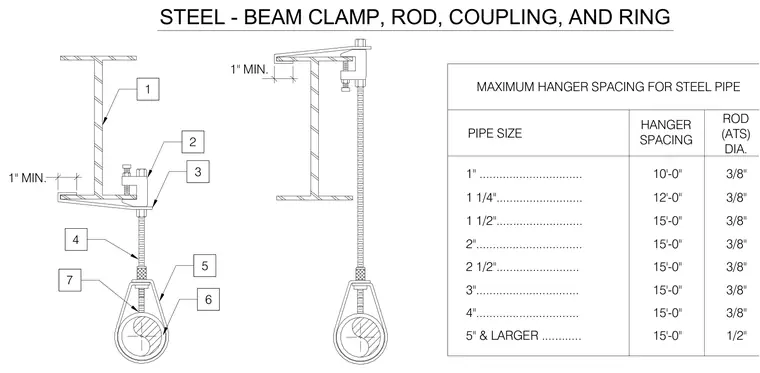

A fire protection piping suspension assembly attaches to a structural steel beam. A beam clamp grips the bottom flange of the structural steel beam with a one-inch minimum engagement. A threaded rod suspends downward from the clamp, connecting to a coupling and a swivel ring that supports the steel pipe. The accompanying table provides maximum hanger spacings and threaded rod diameters for steel pipe sizes ranging from one inch to five inches and larger.
