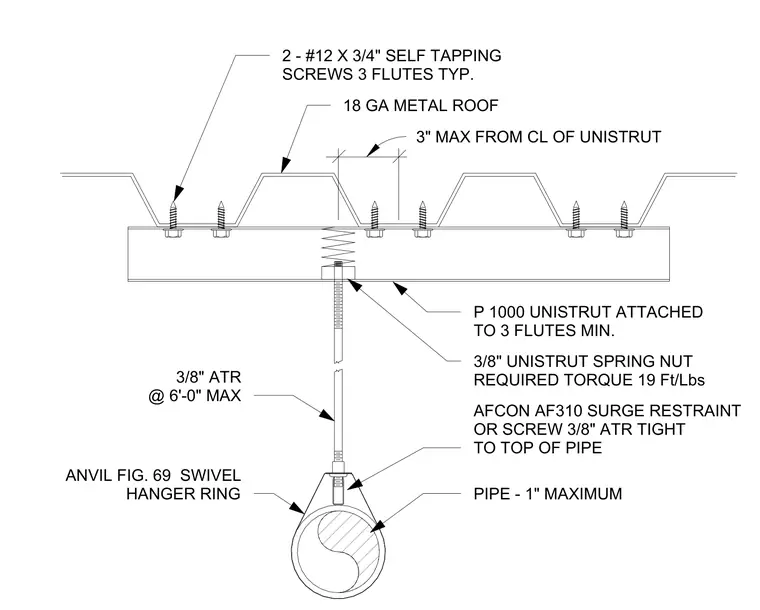

An 18 gauge metal roof deck supports a P 1000 Unistrut channel spanning across three flutes minimum, secured with two number 12 by 3/4 inch self-tapping screws per flute typically. A three-eighths inch all-thread rod is anchored into the Unistrut using a three-eighths inch spring nut tightened to a required torque of 19 foot-pounds. The rod extends down to an Anvil Figure 69 swivel hanger ring holding a maximum one-inch pipe, equipped with an Afcon AF310 surge restraint or screw with the rod tight to the top of the pipe. The all-thread rod is spaced at six feet maximum.
3/8" ATR @ 6'-0" MAX PIPE - 1" MAXIMUM ANVIL FIG. 69 SWIVEL HANGER RING 2 - #12 X 3/4" SELF TAPPING SCREWS 3 FLUTES TYP. AFCON AF310 SURGE RESTRAINT OR SCREW 3/8" ATR TIGHT TO TOP OF PIPE 3/8" UNISTRUT SPRING NUT REQUIRED TORQUE 19 Ft/Lbs 18 GA METAL ROOF P 1000 UNISTRUT ATTACHED TO 3 FLUTES MIN. 3" MAX FROM CL OF UNISTRUT
